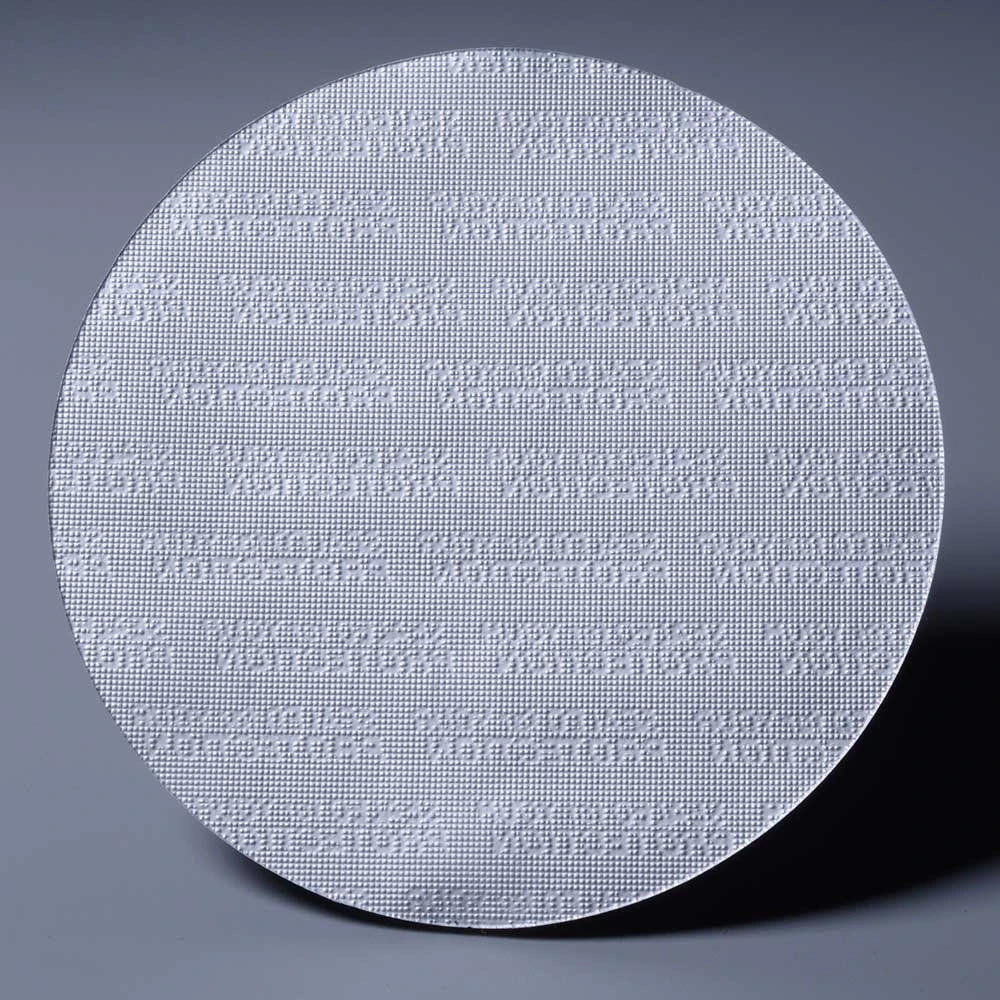

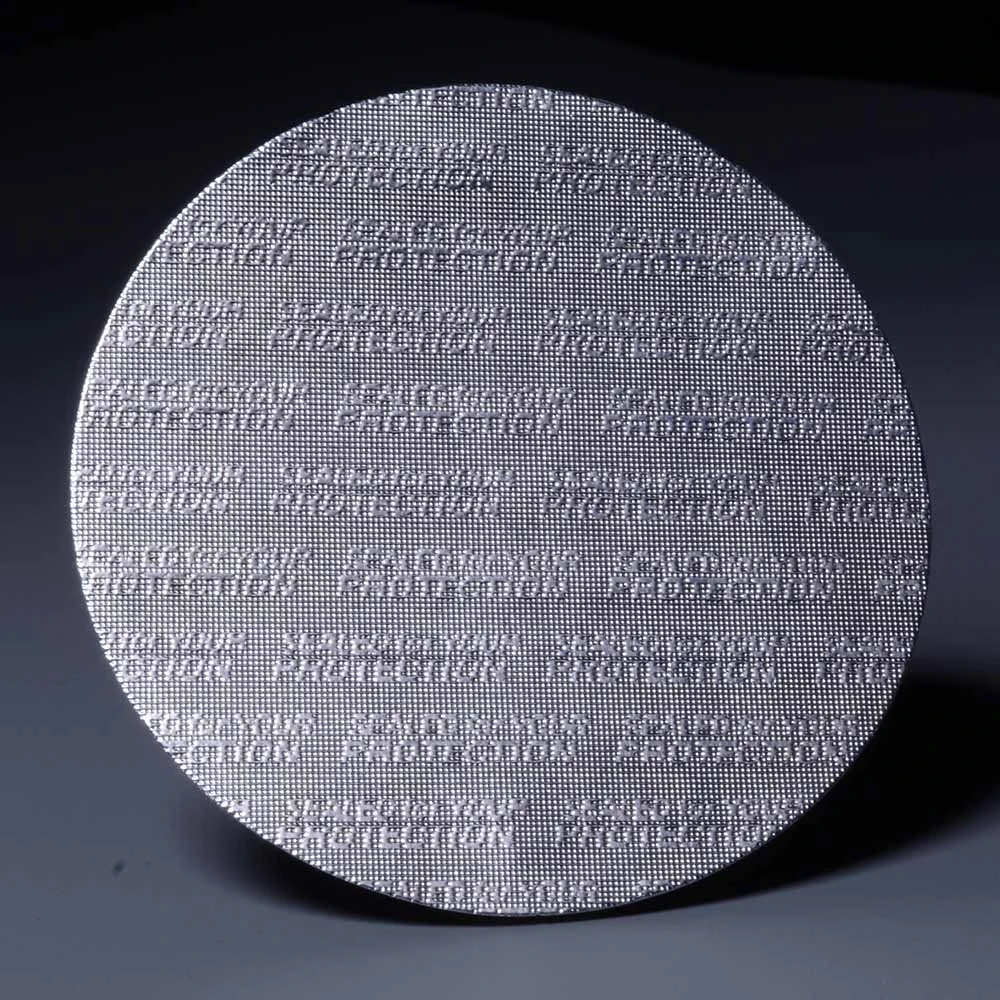

CP-05B embossed aluminum thick foil pressure sensitive seals

CP-05B is made by 0.05mm thick aluminum foil that embossed "SEALED for YOUR PROTECTION".

The adhesive is food-grade adhesive and can safely toch dry and non-oily food.

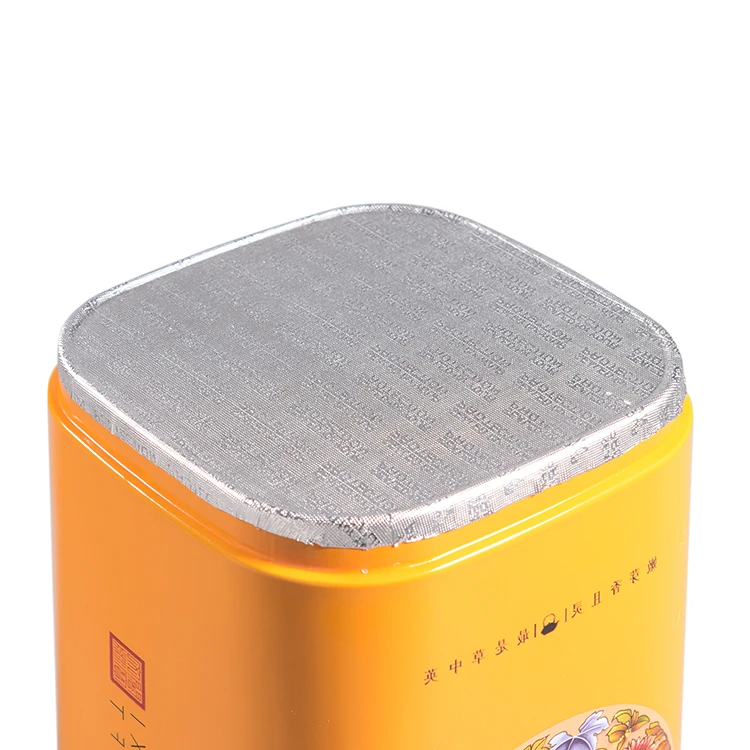

CP-05B could be round, square, any shape.

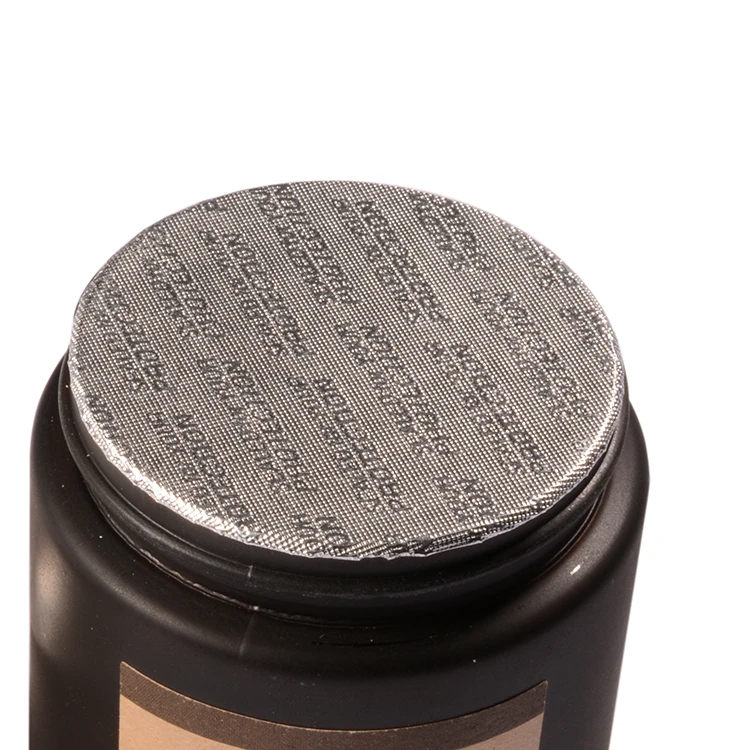

CP-05B due to the foil can not give pressure to the adhesive. You need to use a PE foam liner in the cap to offer the pressure.

Or at least use a straight lid to press the foil seal's edge.





PRODUCT INTRODUCTION

CP-05B is a pressure-sensitive liner that does not contain polystyrene foam. It is made from thick aluminum foil that is embossed and coated with pressure-sensitive adhesive. Featuring a premium appearance, it is free of polystyrene plastic and can be used with both screw caps and press-on closures. Additionally, it leaves no plastic residue on the bottle mouth when peeled off.

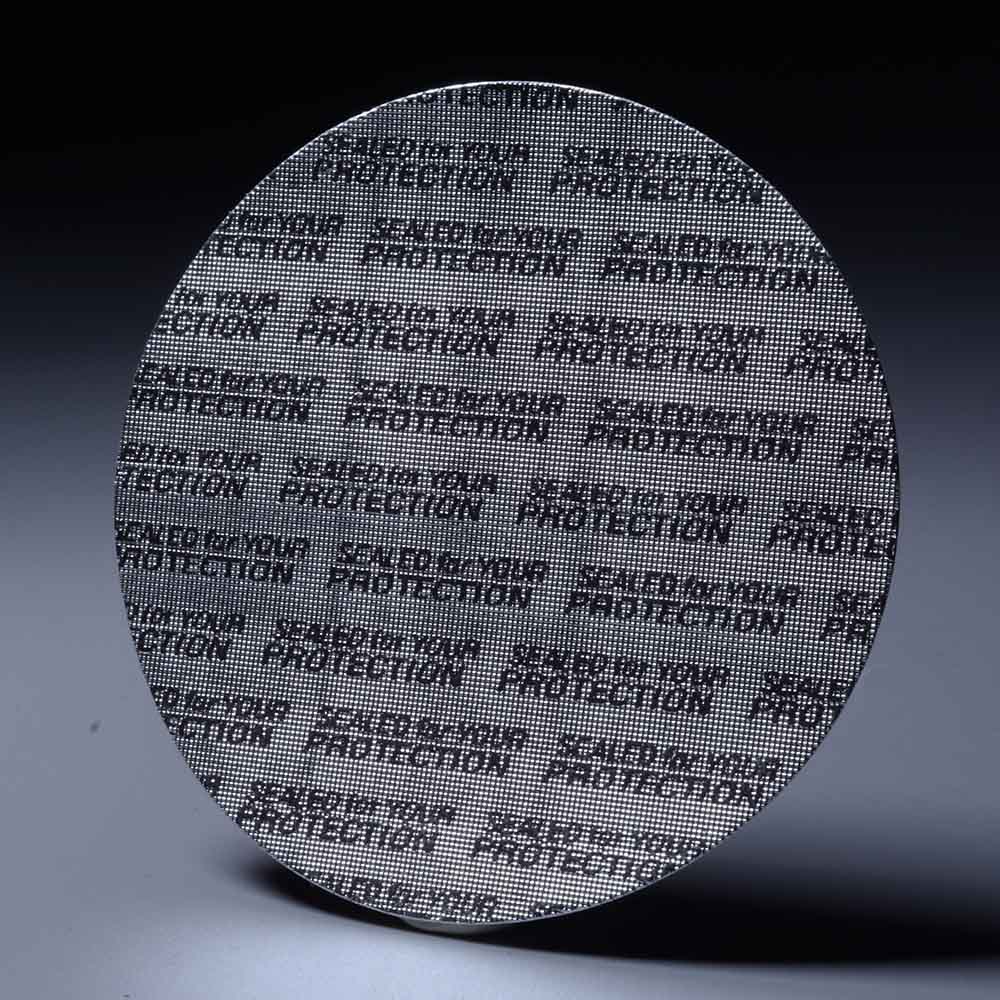

The surface of CP-05B features an embossed pattern that reads "SEALED for YOUR PROTECTION." This pattern can be customized through dedicated tooling to create embossed logos or lettering. Compared to conventional pressure-sensitive materials, CP-05B is less prone to sticking or blocking during transportation, even under high-temperature conditions.

STRUCTURE

  1. aluminum foil 0.05mm thick
  2. adhesive 15g/m2

Certificate

Technical Data Sheet

SPECIFICATION

WIDTH 250MM
THICKNESS 0.1MM
WEIGHT 0.191KG/M2
EMBOSS SEALED FOR YOUR PROTECTION
APPLY TO SOLID, POWDER, CREAM



Customization Scope

Size ( for the pieces order )

Width ( for the roll order )

Emboss ( for both pieces/roll form )

Application Scenarios

Looking for the Right Sealing Liner for Your Packaging?

Tell us your bottle material, contents, and sealing requirements — our engineers will recommend the best solution.
