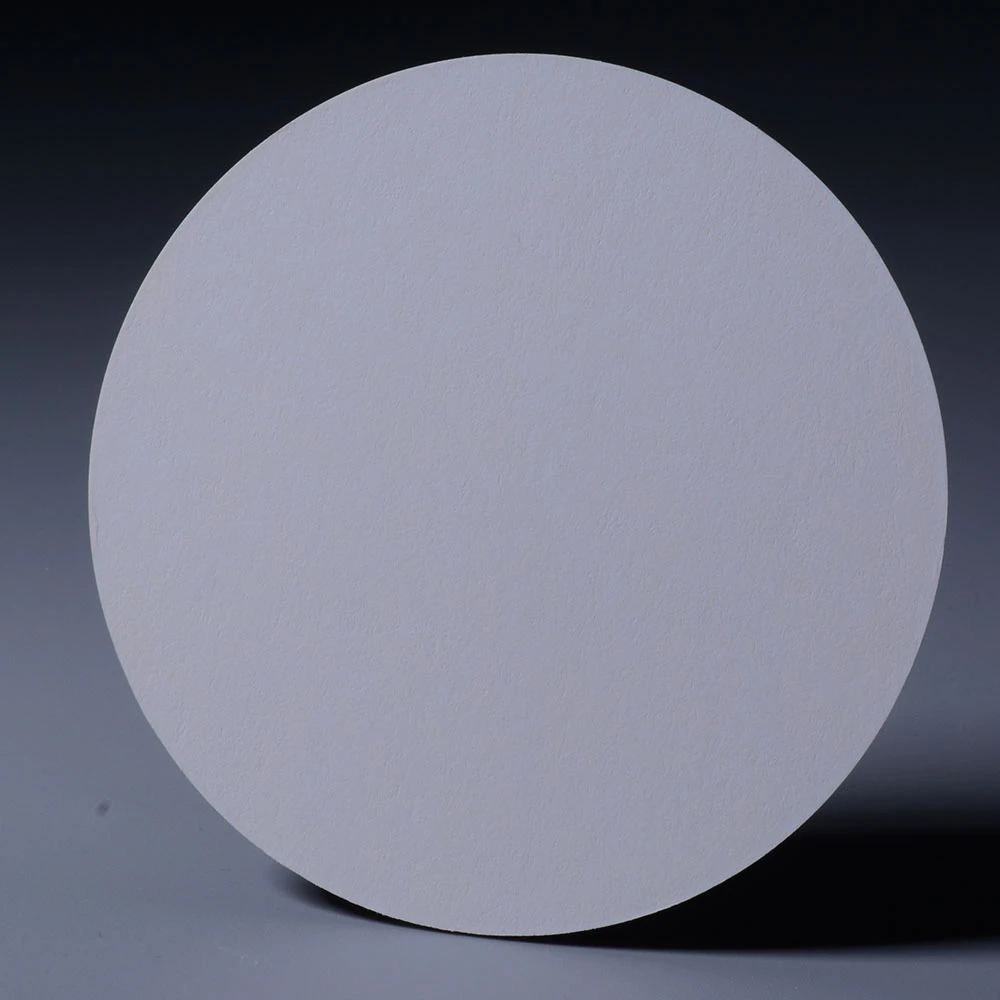

GP-520B Paperboard aluminum foil induction seal liner for instant coffee chocolate hazelnut spread

GP-520B is 0.8mm paperboard laminated induction golden foil seals for glass jar and can use on instant coffee and hazelnut or chocolate.

GP-520B is 2-pieces (2 in 1) induction seal liner and offer custom printing on the foil.

GP-520B is no wax induction seal liner so It offer a clear printing/Logo surface of the foil backing.

Inquire Now

PRODUCT INTRODUCTION

GP-520B is a two-piece wax-free bonded induction sealing paper liner. The aluminum foil side features a gold printing finish by default, and customized printing is also available. It is suitable for sealing bottles or jars made of any material, and is ideal for packaging products such as instant coffee, chocolate, and hazelnut spread. The material complies with FDA regulations.

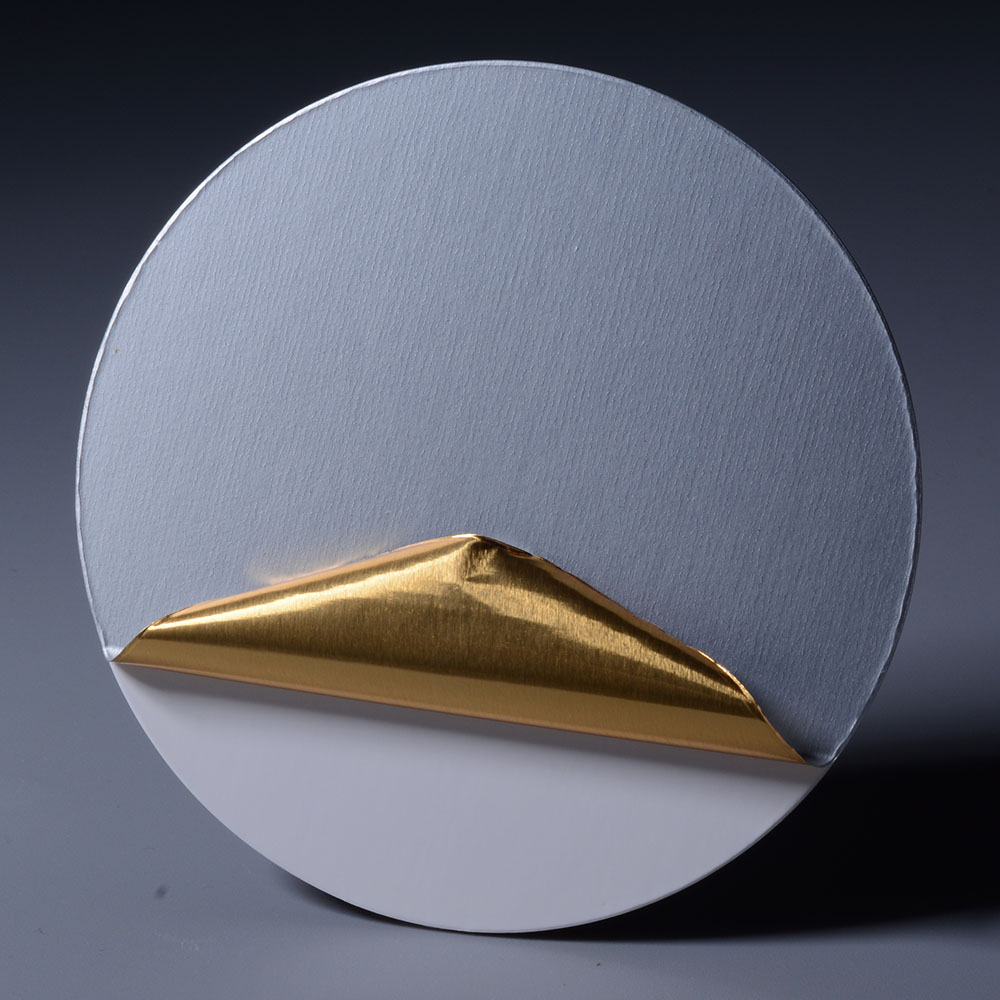

The GP-520B has a paperboard thickness of 0.8 mm, an aluminum foil thickness of 0.02 mm, and a total liner thickness of 0.9 mm. When consumers open the cap, they will hear a distinct sound produced by the separation of the aluminum foil from the paperboard. After opening, the paperboard remains inside the cap, providing a resealing function. The aluminum foil can be easily pierced with a finger, and once peeled off, the bottle mouth remains clean with no residue.

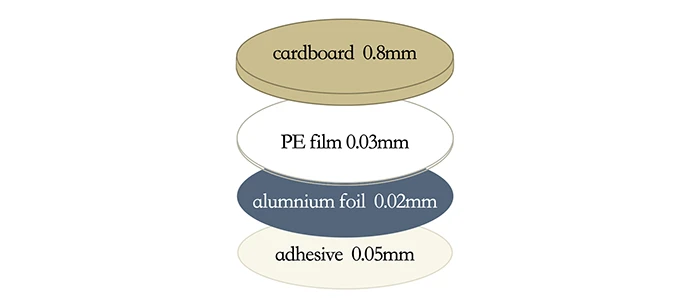

STRUCTURE

paper (0.8mm)
PE film (offer a bonding for paper and foil)
Alu foil (0.02mm thick, offer custom printing)
adhesive (20g/m2)

TECHNICAL DATA SHEET

GP-520B.pdf

SPECIFICATION

THICKNESS	1.0MM +-0.1MM
WEIGHT	0.74KG/M2
WIDTH	260MM
APPLY	UNIVERSAL BOTTLE
COMPATIBLE	SOLID, POWDER, CREAM
